HES500 | 500A 1500V High Voltage DC Contactor
HES500 is a heavy-duty High Voltage DC Contactor engineered for reliable operation in Energy Storage System (ESS) and other high-voltage DC applications. With a rated contact current of 500A and voltage ratings of 1000V and 1500VDC, it is designed to manage high-power loads with stability and safety.
The contactor features a single-pole normally open (SPST-NO) configuration and offers 12V or 24VDC coil voltage options. An optional auxiliary contact provides additional monitoring or control capabilities.
HES500 is ideal for demanding power control systems where both high voltage and high current are present.
Specifications
| Specification | DATA |
|---|---|
| Model: | HES500 |
| Contact Arrangement: | 1 Form, SPST-NO |
| Rated Contact Current: | 500A |
| Rated Voltage: | 1000V, 1500VDC |
| Rated Coil Voltage: | 12VDC, 24VDC |
| Auxiliary Contact: | SPST-NO (Optional) |

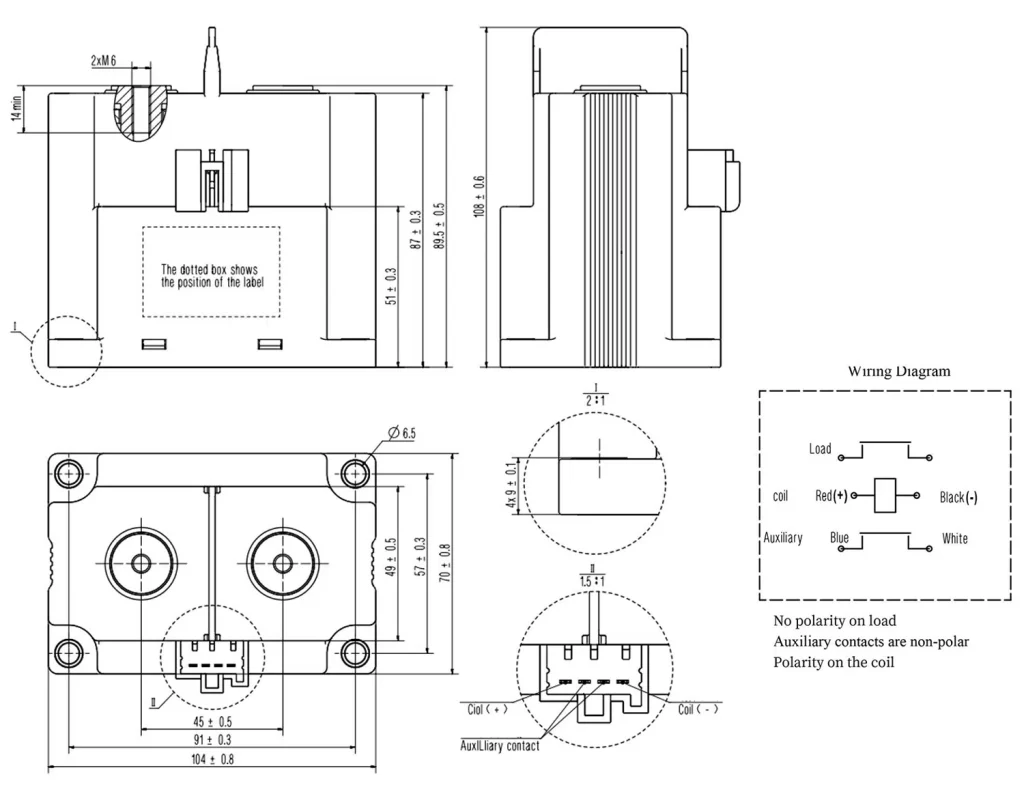

Dimension Drawing & Wiring Diagram
Applications
The HES500 High Voltage DC Contactor is suitable for a variety of energy storage and high-voltage systems:
Energy Storage Systems (ESS):
Provides reliable switching and isolation in high-capacity battery banks.
Solar Inverter Applications:
Supports high-voltage DC switching between PV and inverter systems.
Electric Vehicle Battery Packs:
Handles main circuit current switching in high-voltage EV systems.
Industrial DC Equipment:
Offers circuit control for large-scale industrial DC loads.
DC Charging Infrastructure:
Ensures safe control of high-current DC charging stations.
Telecom and UPS Systems:
Secures backup power channels in high-reliability installations.
Why Choose Us as a High Voltage DC Contactor Supplier?
Expertise in high-voltage solutions
We provide reliable, cutting-edge high-voltage DC contactors tailored for demanding applications.
Durable and efficient products
Our contactors ensure long-term reliability, enhanced performance, and minimal downtime in critical systems.
Customization options
We offer customizable contactors to meet specific operational needs and technical requirements of clients.
Global industry recognition
Trusted by leading manufacturers, our products comply with international standards for quality and performance.
Comprehensive technical support
Our team offers in-depth expertise, assisting with design, installation, and troubleshooting of products.
Commitment to sustainability
We prioritize eco-friendly materials and energy-efficient solutions in our high-voltage DC contactor offerings.
🔍 FAQs
What is the rated current of the HES500 contactor?
The contactor supports a rated contact current of 500A.
What voltage levels are supported?
It is rated for operation at 1000VDC and 1500VDC.
What are the available coil voltages?
The HES500 offers coil options of 12VDC and 24VDC.
What is the contact arrangement?
It features a 1 Form, SPST-NO (Single Pole Single Throw – Normally Open) configuration.
Is there an auxiliary contact option?
Yes, an SPST-NO auxiliary contact is available optionally for status feedback or system control.
Can the HES500 be used in Energy Storage Systems?
Yes, it is specifically designed for ESS applications and other high-voltage DC systems.
Is it suitable for use in DC fast-charging stations?
Absolutely. The HES500 handles high-voltage, high-current DC switching with reliability.
What industries commonly use this contactor?
It is widely used in energy storage, electric vehicles, solar, telecom, and industrial automation sectors.
