EHW100 | SW60 100A 12V DC Contactor
The EHW100 (SW60) 100A 12V DC Contactor is designed for dependable switching in medium-current DC circuits, making it ideal for electric vehicles, industrial machinery, and renewable energy systems. With a rated continuous contact current of 100A and a maximum contact switching voltage of ≤80VDC,
It provides stable and safe operation under demanding conditions. Optional features include magnetic latching for energy savings and a micro switch for auxiliary monitoring.
Specifications
| Specification | DATA |
|---|---|
| Model: | EHW100 |
| Rated Contact Current: | 100A |
| Max Contact Switching Voltage: | ≤80VDC |
| Rated Coil Voltage: | 12V, 24V, 48V, 72VDC |
| Contact Arrangement: | 1 Form, SPST-NO |
| Auxiliary (Optional): | Micro switch |

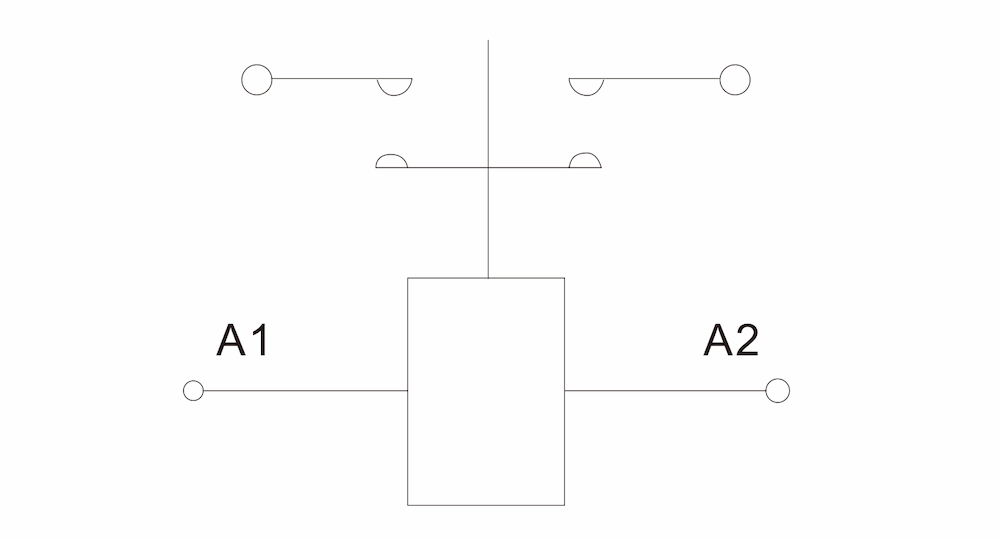

Wiring Diagram

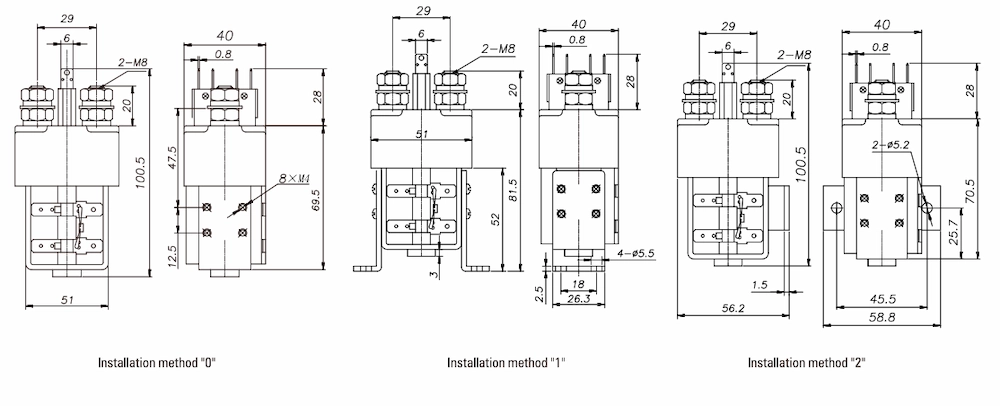

Dimension Drawing
Applications
The EHW versatile DC contactor is suitable for:
Electric Forklifts
Main drive and auxiliary circuit control.
Golf Carts & Utility Vehicles
Compact and efficient DC switching.
Automated Guided Vehicles (AGVs)
Reliable contact control for autonomous systems.
Marine DC Power Systems
Safe control of onboard DC circuits (with enclosure).
Industrial Machinery
Medium-load DC motor and equipment control.
Backup & Emergency Power Systems
Reliable switching for DC standby circuits.
Why Choose Us as a DC Contactor Supplier?
Proven Albright Design
Trusted in industrial and EV applications.
Industrial-Grade Durability
Long operational lifespan.
Optional Magnetic Latching
Reduces coil power consumption.
Global Supply & Logistics
Global Supply & Logistics
Expert Technical Support
Guidance from selection to installation.
B2B Pricing Advantage
Competitive for bulk and OEM orders.
FAQs
What is the rated continuous current?
100A.
What is the maximum contact switching voltage?
≤80VDC.
What coil voltages are available?
12V, 24V, 48V, and 72VDC.
What does SPST-NO mean?
Single Pole Single Throw – Normally Open, meaning the circuit is open until the coil is energized.
Does it have magnetic latching?
It is available as an option for energy-efficient holding.
Is an auxiliary contact included?
No, but an optional micro switch is available.
What industries commonly use it?
EV manufacturing, material handling, renewable energy, and industrial automation.
Is it weatherproof?
It should be installed in a suitable enclosure for outdoor or marine use.
